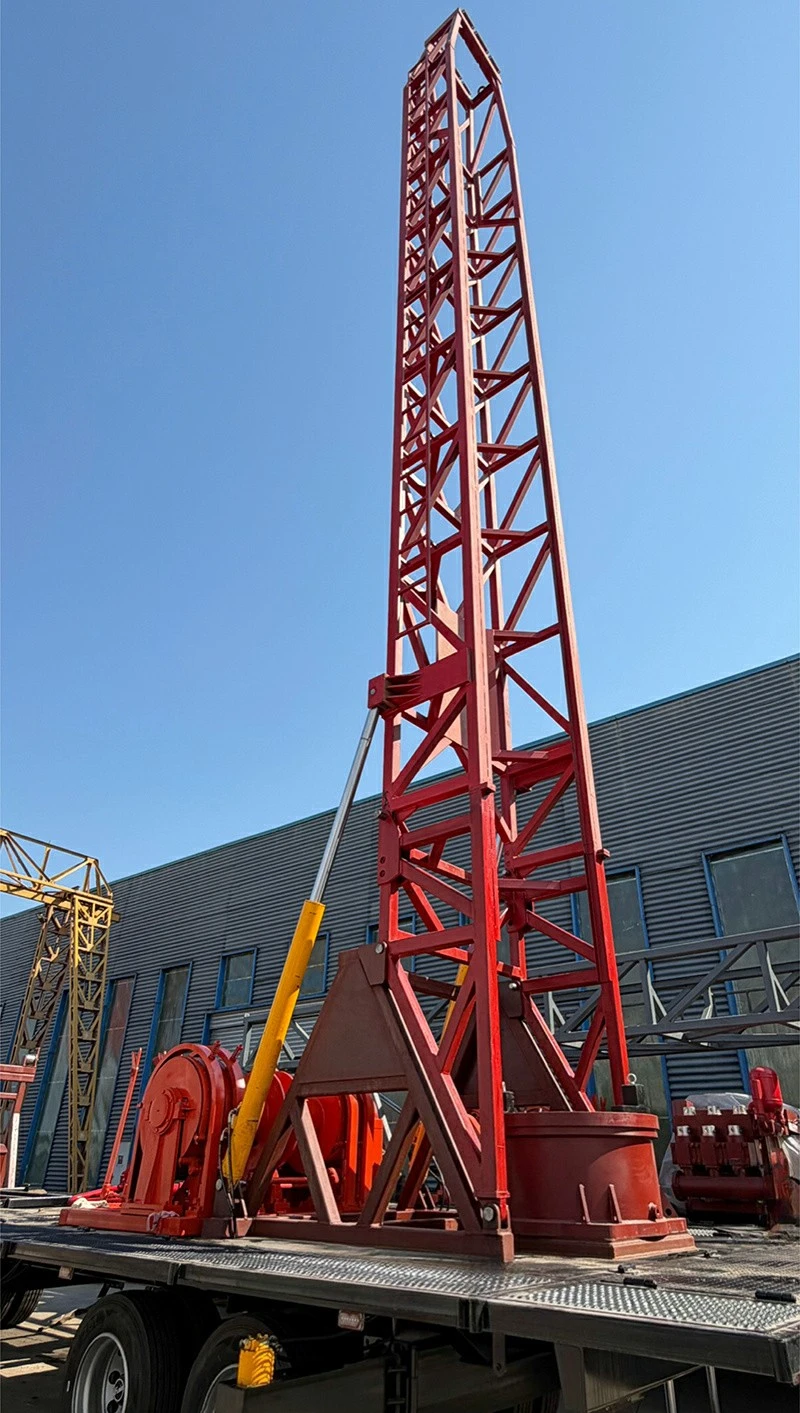

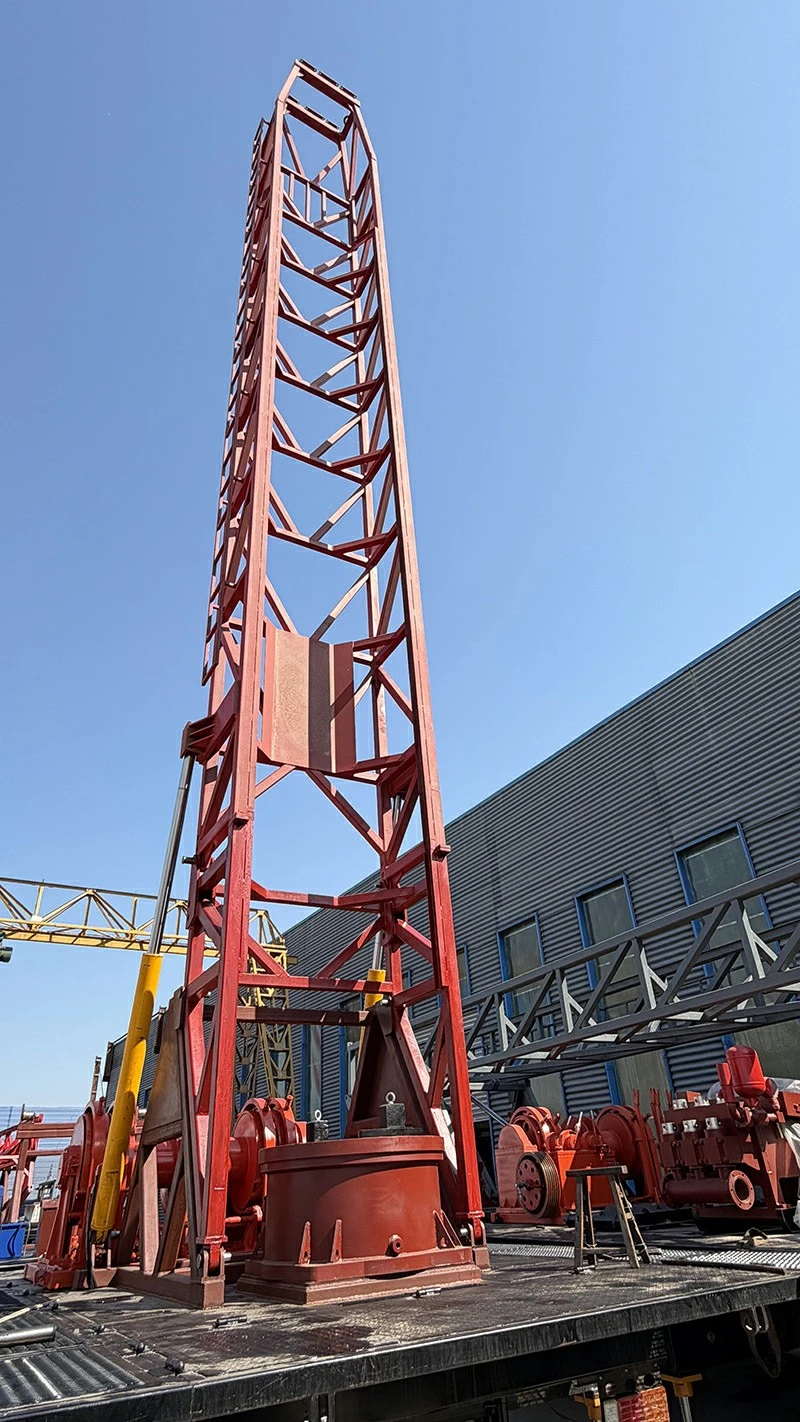

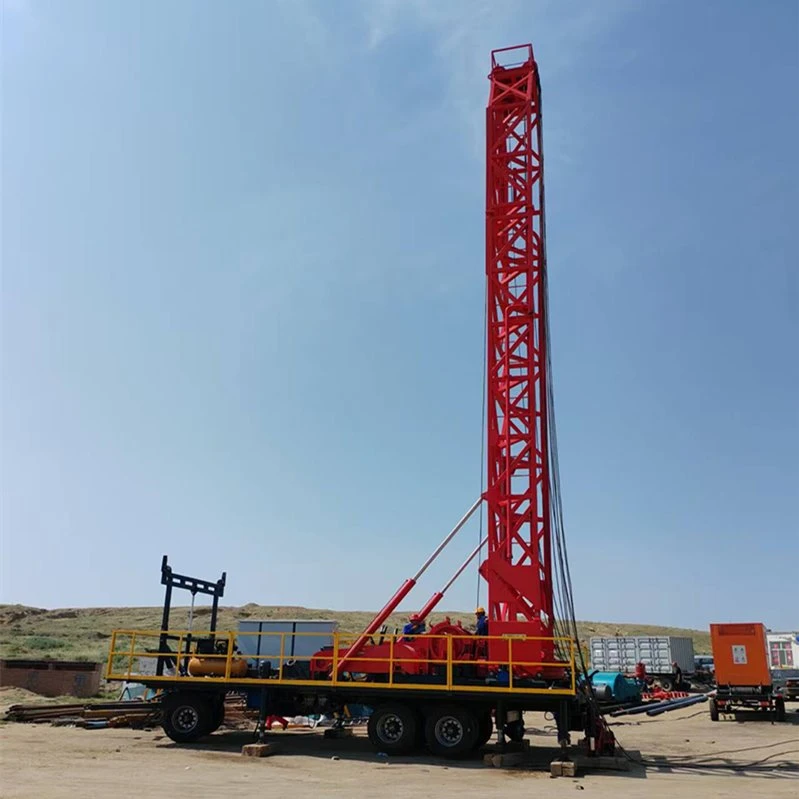

Trailer Mounted Water Well Drilling Rig

Our trailer mounted water well drilling rig is made by Hebei Zhongxin for water well drilling. Our factory started making mechanical parts in 1986. In 1996, we entered the drilling industry. Our factory covers more than 20 acres. We have over 30 years of experience. This rig is mounted on a trailer for easy moving. We mainly make the ZXT-1500 trailer rig. The rig's rotary table opening is 660 mm. The rotary table speeds are 153, 89, 55, and 39 rpm, with forward and reverse. The main winch lift capacity is 90 kN. The auxiliary winch lift capacity is 60 kN. We match it with an F300 mud pump. Its rated pressure is 15.5 MPa. Its maximum flow rate is 120 m³/h. The mast is a portal type with a 70-ton load capacity. The effective height is 18.5 to 24 meters. The total weight is 42 tons. We put all equipment on a heavy trailer. This trailer mounted water well drilling rig is good for deep water wells.

You can use this rig for geothermal wells. It also works for farm irrigation wells and industrial water wells. Our products have gone to the Middle East, Africa, Russia, and South America. Customers say our trailer rig moves very fast. It saves a lot of transport trouble. Below is a table of key specifications.

We have strict quality requirements. We produce to API standards. We do a 100% check on every product. We have the ISO9001 certification. Our factory has CNC friction welding machines, pipe end upsetting machines, straightening machines, and a semi-automatic hardening line. Our service is very good. Before sale, we help you choose the right model. During production, we send photos and videos. After sale, we provide free lifetime technical help. We also supply parts for life. We can do video training. For some countries, we offer on-site service. This trailer mounted water well drilling rig is a great choice for deep well work.
