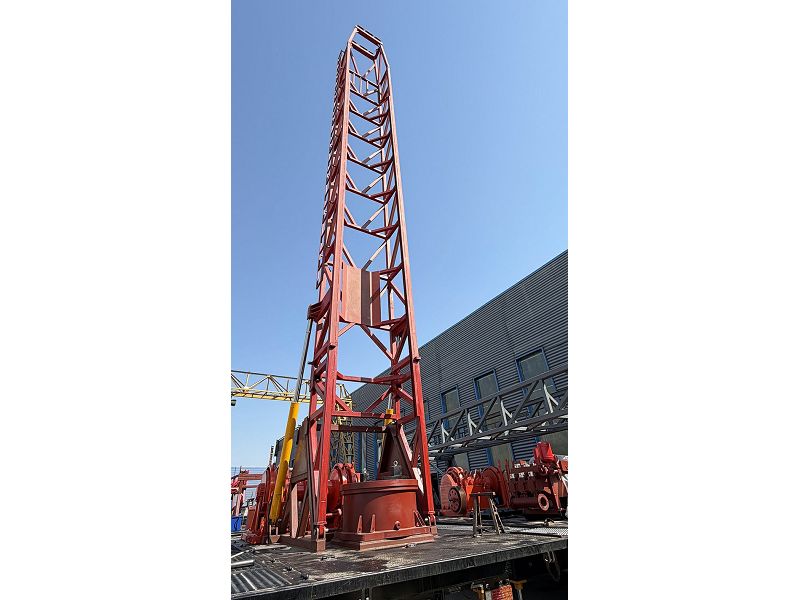

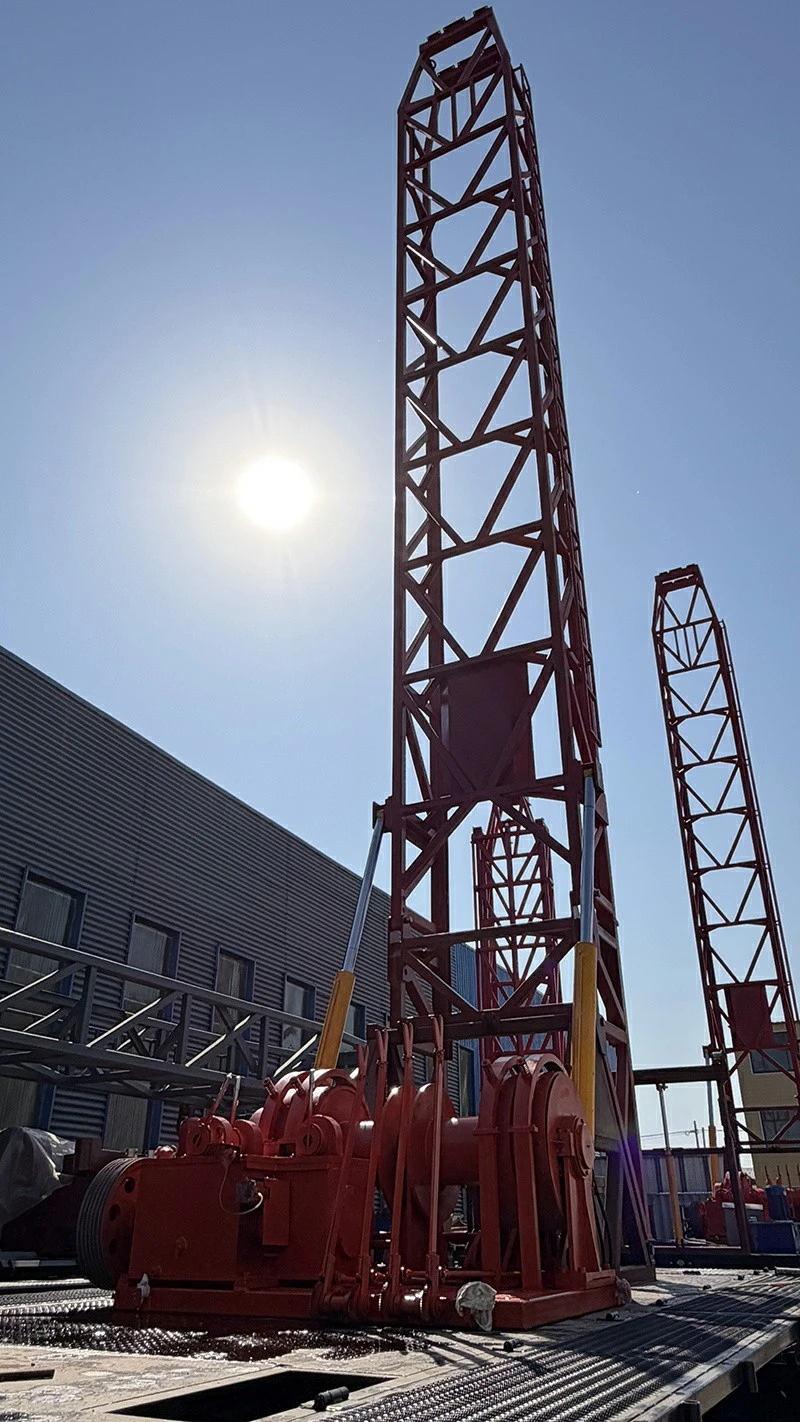

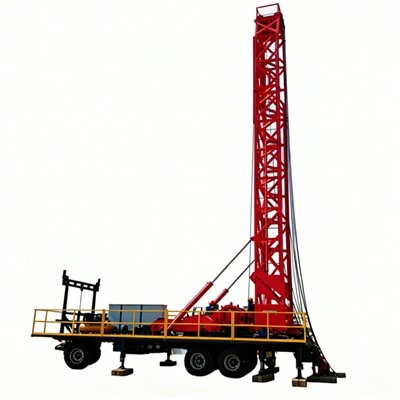

A Mobile Drilling Platform on Wheels
Our drilling trailer is a product of Hebei Zhongxin. Our factory was built in 1986. We have over 30 years of history. In 1996, we started making drilling equipment. Our factory covers more than 20 acres. We have our own R&D team. This trailer is a complete drilling platform. Our trailer platform uses the ZXT-1500 rig. The rig's rotary table opening is 660 mm. The main winch lift capacity is 90 kN. We match it with an F300 mud pump. Mast height can be up to 24 meters. Total weight is 42 tons. We put everything on a three-axle heavy trailer. The trailer has air brakes and suspension. It can run on highways. At the job site, you extend the stabilizers, raise the mast, connect water and power, and start drilling. This drilling trailer is very stable and does not shake during work.
Good for Deep Wells and Geothermal Holes
You can use this trailer for deep wells. It also works for geothermal wells and uranium extraction holes. Our products have gone to the Middle East, Africa, Russia, and South America. Customers say our trailer platform is very stable. Below are key specifications.
|
Parameter |
Value |
|
Rig Model |
ZXT-1500 |
|
Rotary Table Opening |
660 mm |
|
Main Winch Lift Capacity |
90 kN |
|
Mud Pump |
F300 |
|
Mast Height (max) |
24 m |
|
Trailer Type |
Three-axle, air brakes, suspension |
|
Total Weight |
42 tons |
100% Inspection and Lifetime Support
We are very strict about quality. We produce to API standards. We do a 100% check on every part. We keep all production and test records. We have the ISO9001 quality certificate. Our service is honest. Before sale, we confirm the platform configuration with you. During production, we send photos and videos. After purchase, we provide free lifetime technical help. We also supply parts for life. We can do video operation training. For some countries, we offer on-site service. This drilling trailer is a mobile drilling base for your work.
