High Pressure Grout Pump

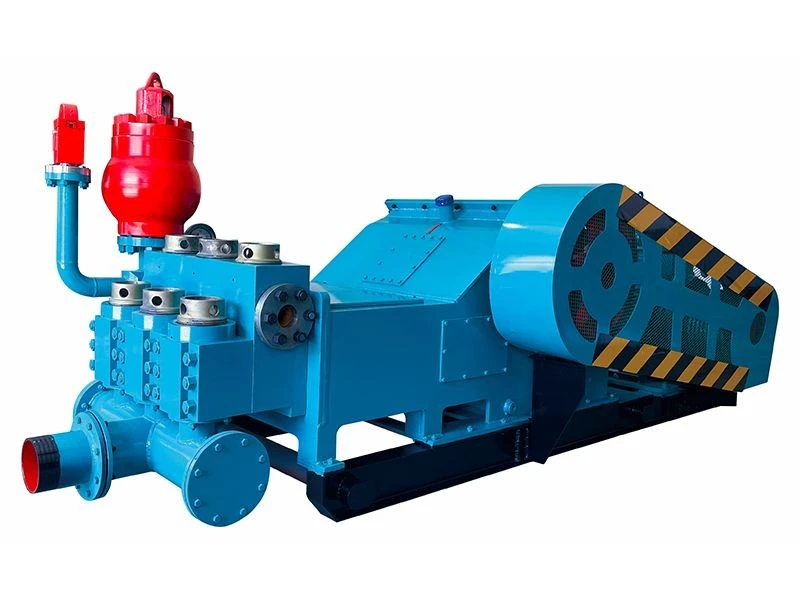

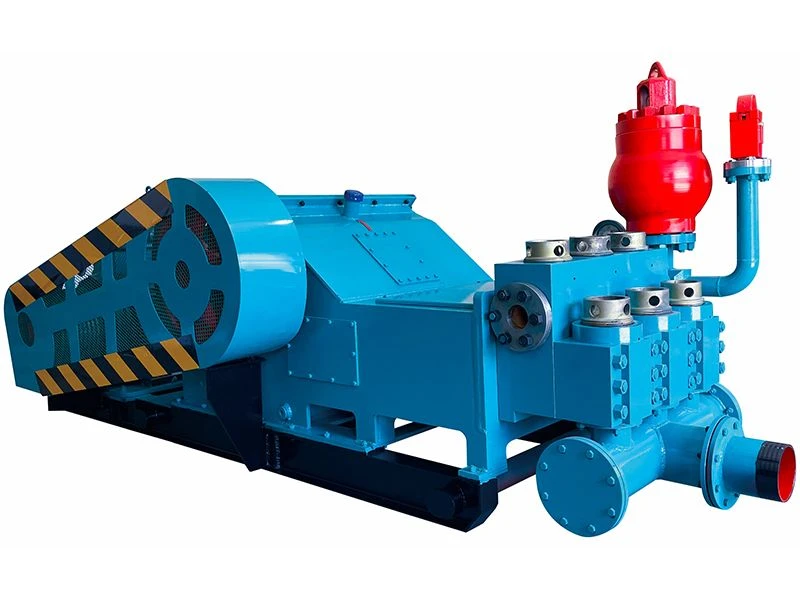

Our high pressure grout pump is a product of Hebei Zhongxin. Our factory started making mechanical parts in 1986. In 1996, we entered the drilling industry. Our factory covers more than 20 acres. We have over 30 years of experience. This pump can create very high pressure for deep grouting. Our main high-pressure grout pumps are the F500 and F1000 models. Here we use the F500 model as an example. It is a horizontal three-cylinder single-acting piston pump. Its input power is 373 kW (500 HP). The rated stroke rate is 130 times per minute. The stroke length is 180 mm. The suction pipe diameter is 200 mm. The discharge pipe diameter is 83 mm. The total weight is 10680 kg. The maximum pressure can reach 30.0 MPa. This high pressure grout pump is good for high-pressure jobs.

You can use it for deep grouting. It also works for bed separation grouting and cementing. We use it for coal mine fire prevention grouting and dam reinforcement. Our products have sold to the Middle East, Africa, Russia, and South America. Customers say our high-pressure pump has stable pressure and does not leak. Below is a table of rated pressure for different liners on the F500 model. A smaller liner gives higher pressure. Mechanical efficiency is 90%. Volumetric efficiency is 100%.

Please contact us for a detailed table of theoretical flow rate.

We care a lot about quality. We produce to API standards. We do a 100% check on every product. We keep all records. Every product can be traced. We have the ISO9001 certification. Our factory has CNC friction welding machines, pipe end upsetting machines, straightening machines, and a semi-automatic hardening line. Our service is thoughtful. Before sale, we check parameters and plans carefully. During production, we send photos and videos. After sale, we provide free lifetime technical help. We also supply parts for life. We can do video training. For some countries, we offer on-site service. This high pressure grout pump makes your deep grouting more effective.
