A Powerful Pump Built on 30 Years of Experience

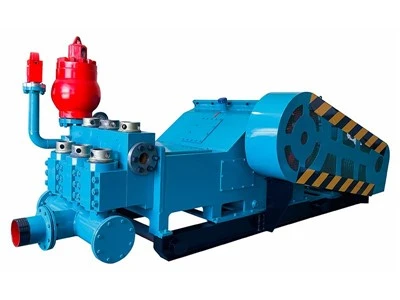

Our electric mud pump comes from Hebei Zhongxin. We started making mechanical parts in 1986. In 1996, we entered the drilling industry. Our factory covers more than 20 acres. We have our own R&D team. We build reliable equipment for our customers. This pump is a horizontal three-cylinder single-acting piston pump. The model is F130. Its input power is 90 kW (130 HP). The rated stroke rate is 135 times per minute. The stroke length is 160 mm. The suction pipe diameter is 152 mm. The discharge pipe diameter is 64 mm. The size is 3560 mm x 1560 mm x 1560 mm. The total weight is 4300 kg. You can use this electric mud pump for water wells. It also works for geological exploration and oil drilling. We have sold our products to the Middle East, Africa, Russia, and South America. Our customers trust us for our strong machines.
Check the Technical Data and Performance Table
This pump gives you clear choices for different jobs. Below is a simple table. It shows the liner diameter, flow rate, and pressure. The mechanical efficiency is 90%. The volumetric efficiency is 100%. These numbers come from real tests. Small differences can happen in real use.
Liner Diameter (mm) | Theoretical Flow Rate (L/s) | Rated Pressure (MPa) |
φ100 | 8.5 | 10.0 |
φ110 | 10.2 | 7.5 |
φ120 | 12.1 | 6.5 |
φ130 | 14.2 | 5.5 |
φ140 | 16.5 | 4.5 |
This data helps you pick the right setting for your project. It works well for coal field drilling, too. We make sure you have the numbers you need to work efficiently.
Strong Quality Control and Lifetime Support
We follow strict rules for quality. We produce every part according to API standards. We do a 100% check on every single part. We keep all production and test records. This means you can trace every product back to its source. We also have the ISO9001 certificate. Our factory uses advanced machines. We have multiple TPX6213 horizontal boring machines and machining centers. We also have efficient friction welding machines, pipe end upsetting machines, and straightening machines. We have a semi-automatic hardening line, too. Before you buy, we talk about all details and give you a clear price. During production, we send you photos and videos. After you buy, we offer free lifetime technical help. We also supply parts for life. We can do video operation training. For some countries, we provide on-site service. This electric mud pump is a real tool to help your business grow.
