Mud Pump Drilling Equipment

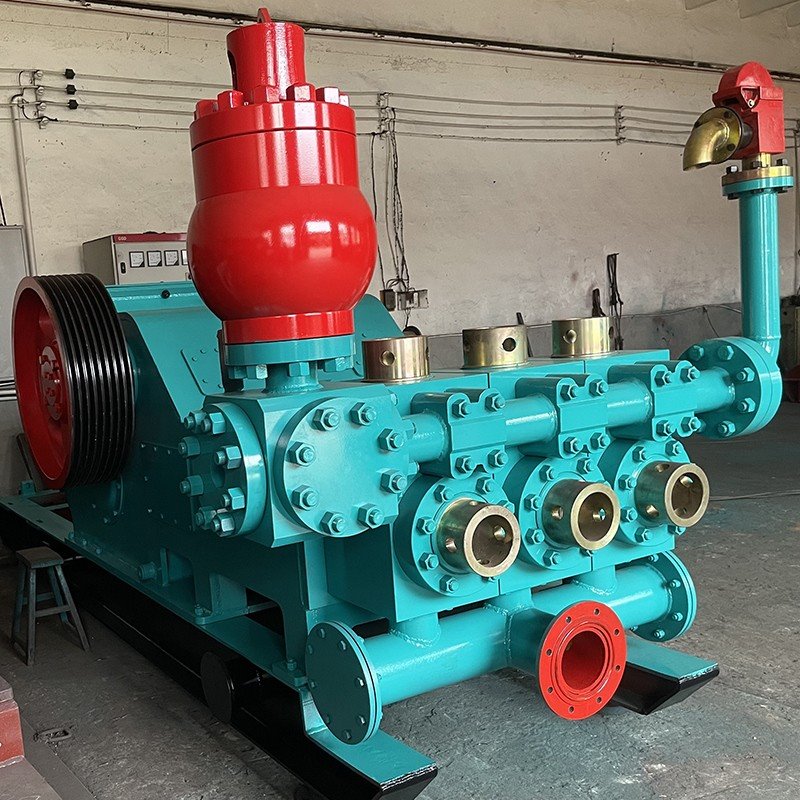

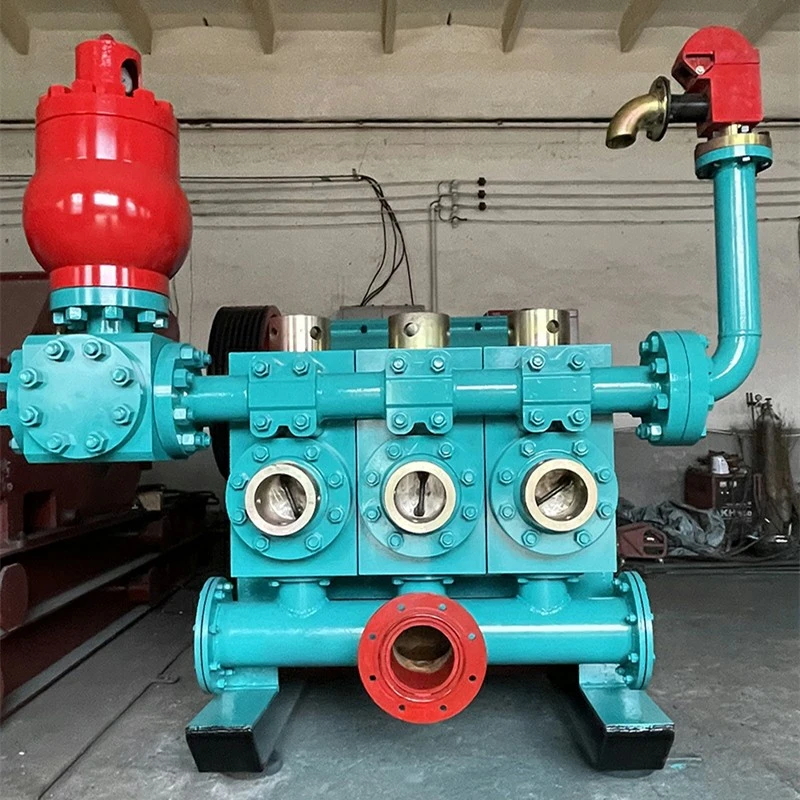

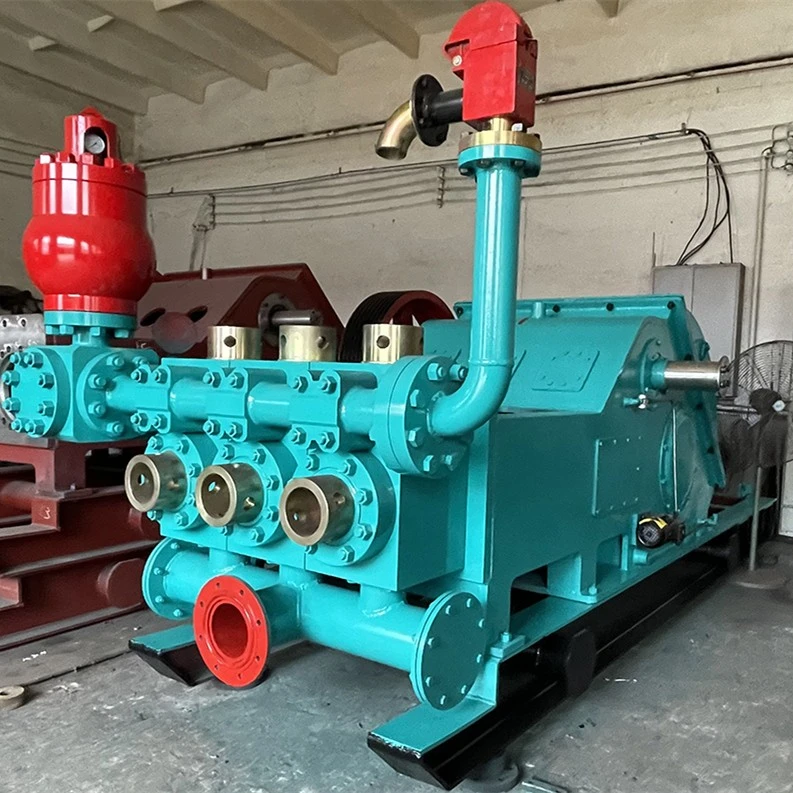

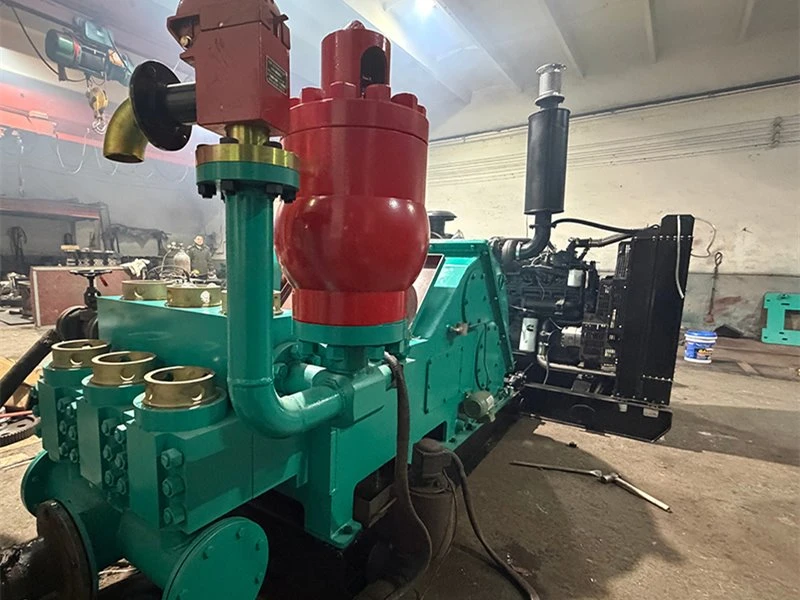

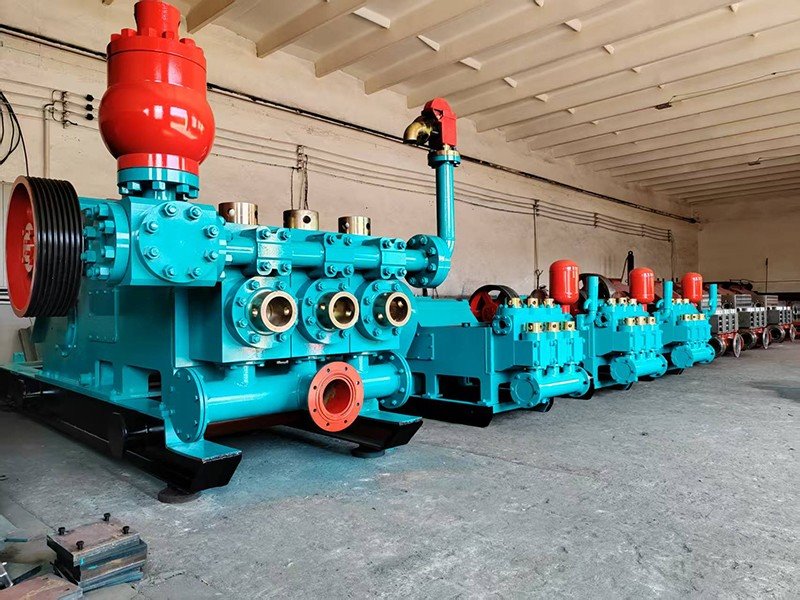

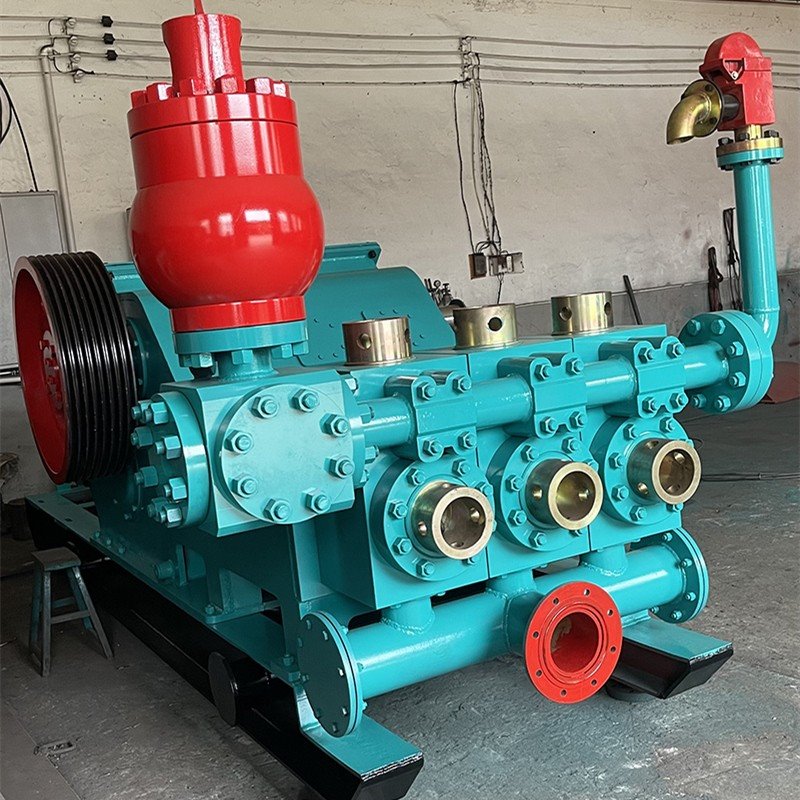

Our mud pump drilling equipment is a total solution from Hebei Zhongxin. Our factory started making mechanical parts in 1986. In 1996, we entered the drilling equipment industry. Our factory covers more than 20 acres. We have over 30 years of experience. We make the pump and the drill rig as one set. The mud pump in this set is the F300 model. It is a horizontal three-cylinder single-acting piston pump. Its input power is 220 kW (296 HP). The rated stroke rate is 145 times per minute. The stroke length is 178 mm. The suction pipe diameter is 203 mm. The discharge pipe diameter is 90 mm. The size is 4550 mm x 1660 mm x 1950 mm. The total weight is 8200 kg. This mud pump drilling equipment set is good for many drilling jobs.

You can use it for water wells. It also works for oil drilling and geothermal wells. We use it for coal field exploration and water conservancy projects. Our products sell to the Middle East, Africa, Russia, and South America. Customers say our equipment works well together. Below is a table for the pump's parameters. Mechanical efficiency is 90%. Volumetric efficiency is 100%. Real data may have small differences.

We are very strict about quality. We produce according to API standards. We do a full check on every product. We keep all production and test records. So every product can be traced. We have the ISO9001 certificate. Our factory has CNC friction welding machines, pipe end upsetting machines, straightening machines, and a semi-automatic hardening line. Our service is down-to-earth. Before sale, we help you select the right model. During production, we send progress photos and videos. After sale, we provide free lifetime technical help. We supply parts for life. We can do video operation training. For some countries, we offer on-site service. This mud pump drilling equipment set saves you worry on the job.
