Water Bore Drill Rig

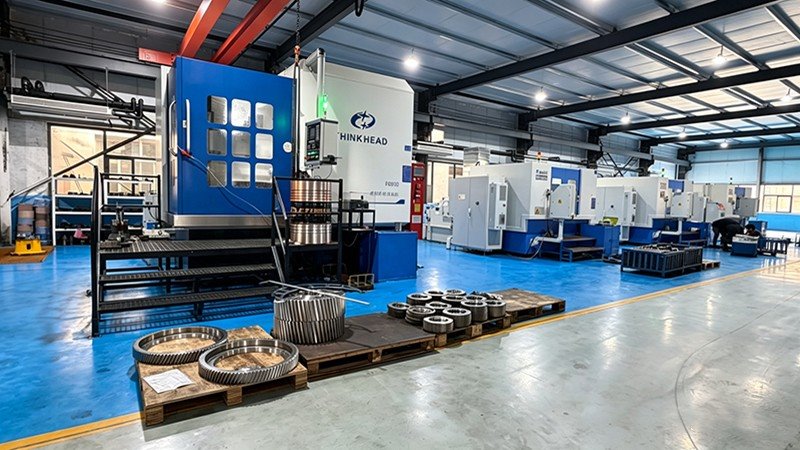

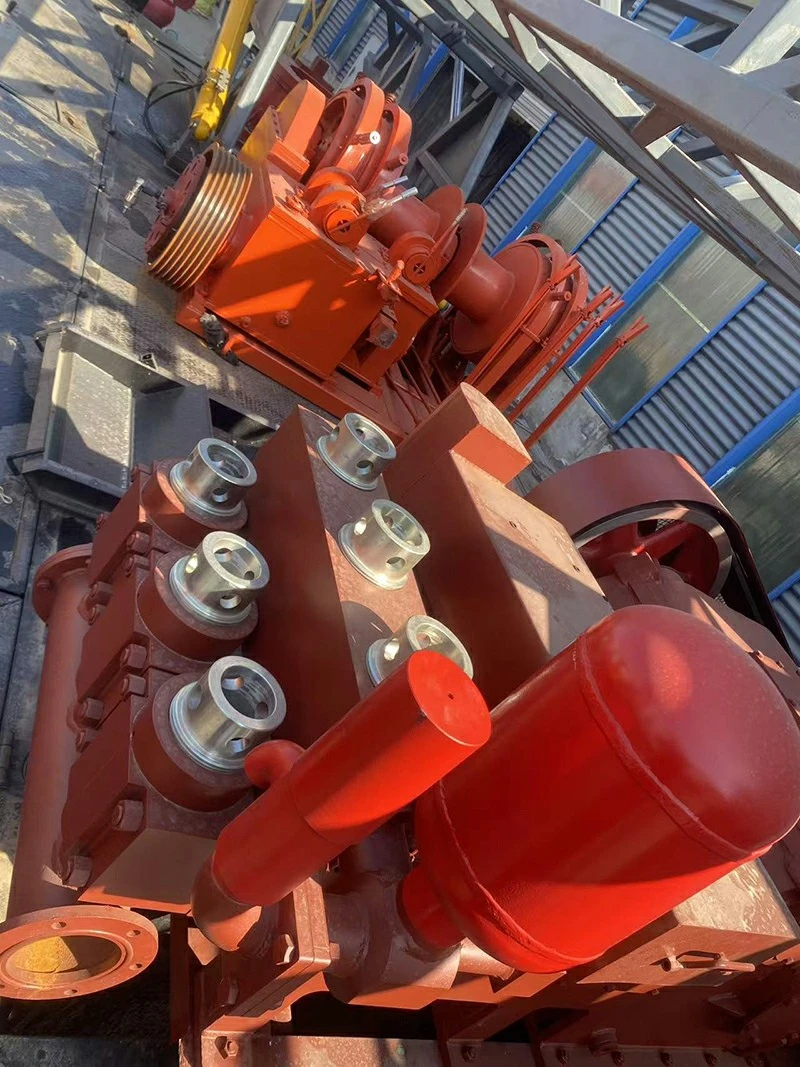

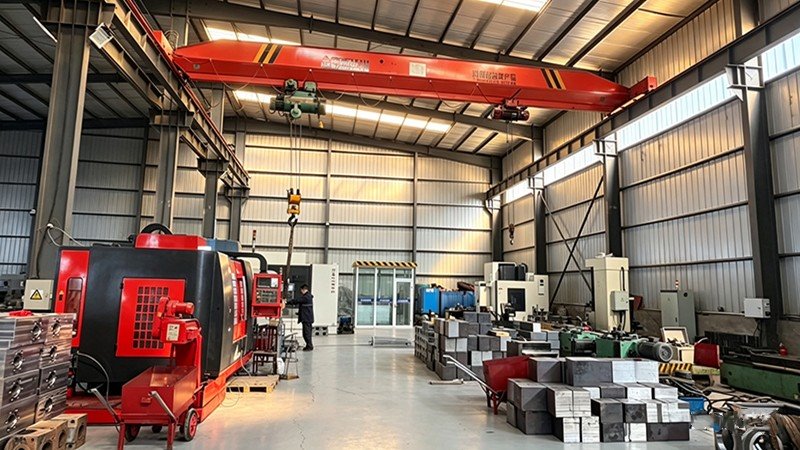

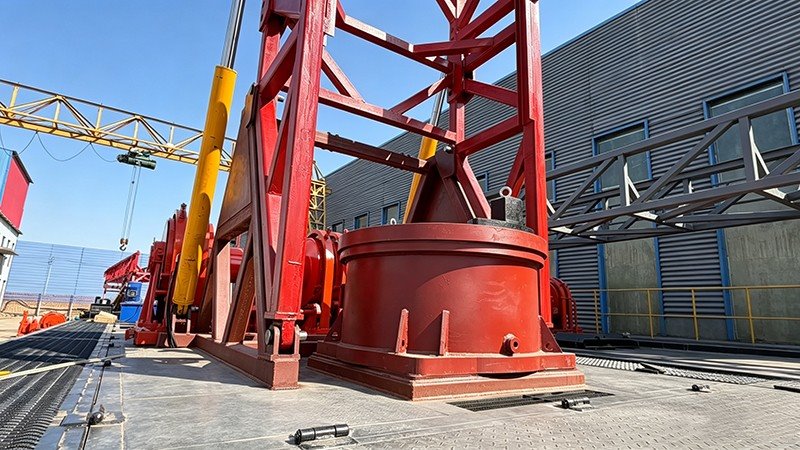

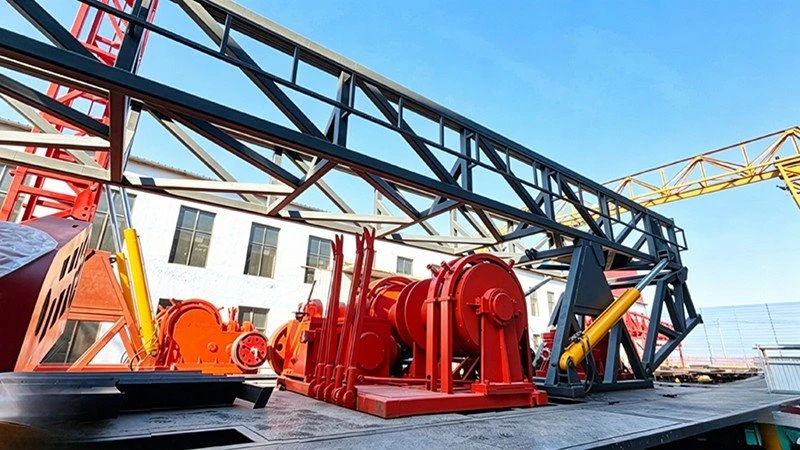

Our water bore drill rig is a core product from Hebei Zhongxin. Our factory started making mechanical parts in 1986. In 1996, we entered the drilling industry. Our factory covers more than 20 acres. We have over 30 years of experience. We make several models of water well rigs. Our main models are the ZXT-1000 and ZXT-1500. The ZXT-1000 with φ89 drill pipe reaches 800 to 1000 meters deep. Its rotary table opening is 600 mm. Torque is 12 kNm. Mast height is 15.3 meters. Load is 60 tons. Total weight is 26 tons. It comes with an F130 or F150 mud pump. The ZXT-1500 has a 660 mm rotary table opening. Its main winch lift capacity is 90 kN. Mast height can be up to 24 meters. Total weight is 42 tons. It comes with an F300 mud pump. This water bore drill rig is very reliable and drills fast.

You can use this rig for home water wells. It also works for farm irrigation wells and industrial water wells. We use it for geothermal wells and monitoring wells, too. Our products have sold to the Middle East, Africa, Russia, and South America. Customers say our rig is very reliable and fast. The rig can use mud, foam, or air for drilling. We help you choose the right method for your ground conditions. The rig has crawler tracks. It can drive on and off a truck by itself. We produce to API standards. We have the ISO9001 certification.

Our service is honest. Before sale, we help you choose the right model. During production, we send photos and videos. After sale, we provide free lifetime technical help. We also supply parts for life. We can do video training. For some countries, we offer on-site service. This water bore drill rig is a great partner for your well drilling work.
