Water Well Mud Pump

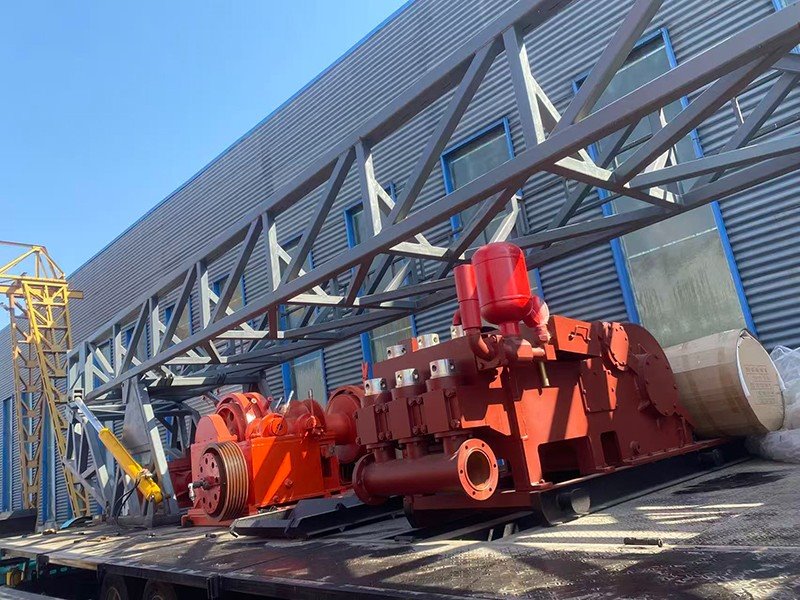

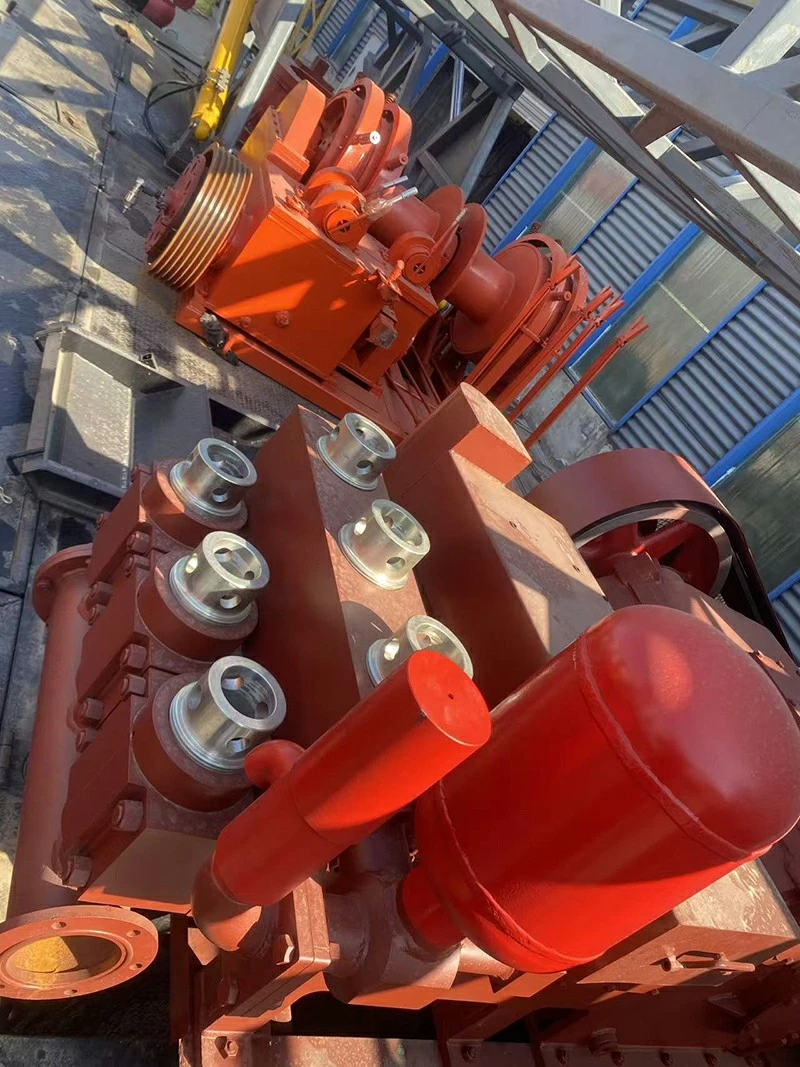

Our water well mud pump is made by Hebei Zhongxin to work with water well rigs. Our factory started making mechanical parts in 1986. In 1996, we entered the drilling industry. Our factory covers more than 20 acres. We have over 30 years of experience. This pump is designed for water well rigs. Our common model is the F150 mud pump. It is a horizontal three-cylinder single-acting piston pump. Its input power is 110 kW (150 HP). The rated stroke rate is 160 times per minute. The stroke length is 135 mm. The suction pipe diameter is 152 mm. The discharge pipe diameter is 64 mm. The size is 3180 mm x 1560 mm x 1560 mm. The total weight is 4500 kg. This water well mud pump is a perfect match for water well rigs.

You can use it to supply mud to a drill rig. It also works for geological exploration and oil drilling. We use it for water conservancy projects and coal field exploration. Our products have sold to the Middle East, Africa, Russia, and South America. Customers say this pump fits water well rigs just right. Below is the liner parameter table for the F150 model. Mechanical efficiency is 90%. Volumetric efficiency is 100%. Real data may have small differences.

We have very strict quality requirements. We produce to API standards. We do a 100% check on every product. We keep all production and test records. We have the ISO9001 certificate. Our factory has CNC friction welding machines, pipe end upsetting machines, straightening machines, and a semi-automatic hardening line. Our service is very good. Before sale, we help you match the pump to your rig. During production, we send photos and videos. After sale, we provide free lifetime technical help. We also supply parts for life. We can do video training. For some countries, we offer on-site service. This water well mud pump is a good partner for your water well rig.
