Diesel Engine Mud Pump

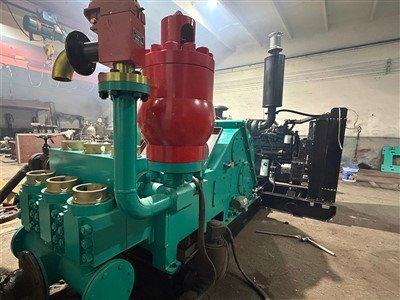

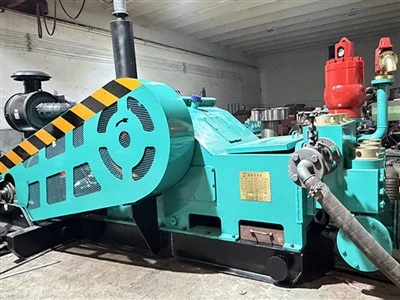

Our diesel engine mud pump is made by Hebei Zhongxin. Our factory started making mechanical parts in 1986. We entered the drilling industry in 1996. Our factory covers more than 20 acres. We have over 30 years of experience. We have our own R&D team. We support OEM and ODM customization. This pump comes with a diesel engine. The model is 650. The input power is 400 kW (650 HP). The rated input speed is 165 rpm. The stroke length is 190 mm. The suction pipe diameter is 200 mm. The discharge pipe diameter is 83 mm. The theoretical flow rate is 37 to 187 m³/h. The rated pressure is 15.1 to 4.2 MPa. The total weight is 10280 kg. This diesel engine mud pump is good for field work. It works on its own where there is no electricity.

You can use this pump for deep water wells. It is also good for oil drilling and geothermal wells. We use it for coal field exploration and water conservancy projects. Our products sell to the Middle East, Africa, Russia, and South America. Customers say this pump saves fuel and has strong power. Below are the main parameters. The exact flow rate and pressure change with the liner diameter. Please contact us for a detailed table.

We care a lot about quality. We follow API standards for machining. We inspect every step. We keep all records. So every product can be traced. We also have the ISO9001 certification. Our equipment includes CNC friction welding machines, pipe end upsetting machines, straightening machines, and a semi-automatic hardening line. Our service is honest. Before sale, we check parameters and quotes carefully. During production, we send photos and videos. After sale, we provide free lifetime technical help. We also supply parts for life. We can do video training. For some countries, we send technicians to the field. This diesel engine mud pump is a great helper for your field work.
