Self-Powered Pump for Remote Locations

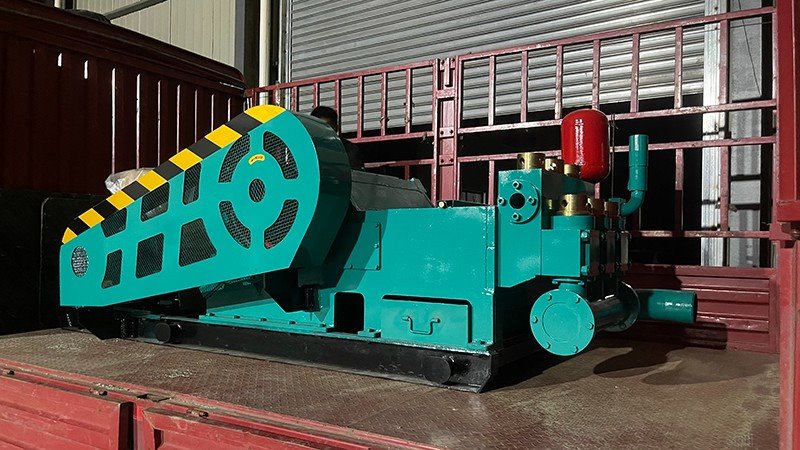

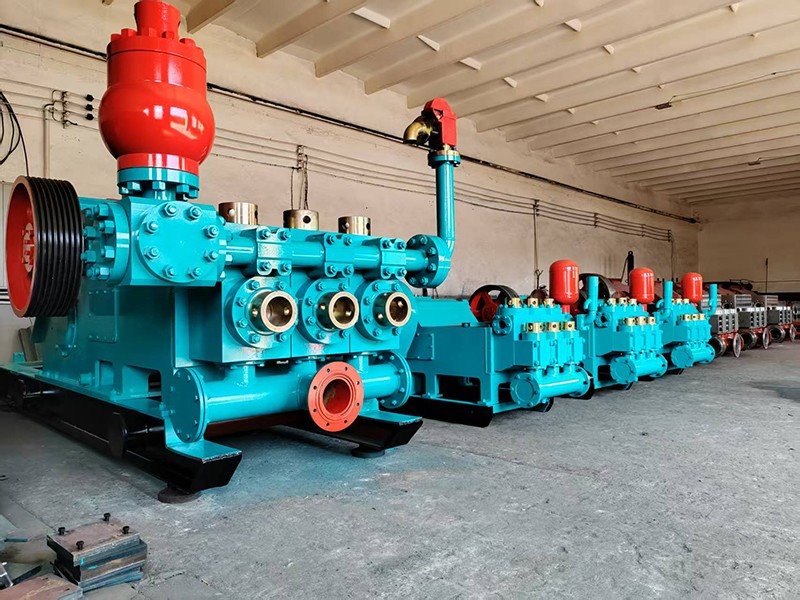

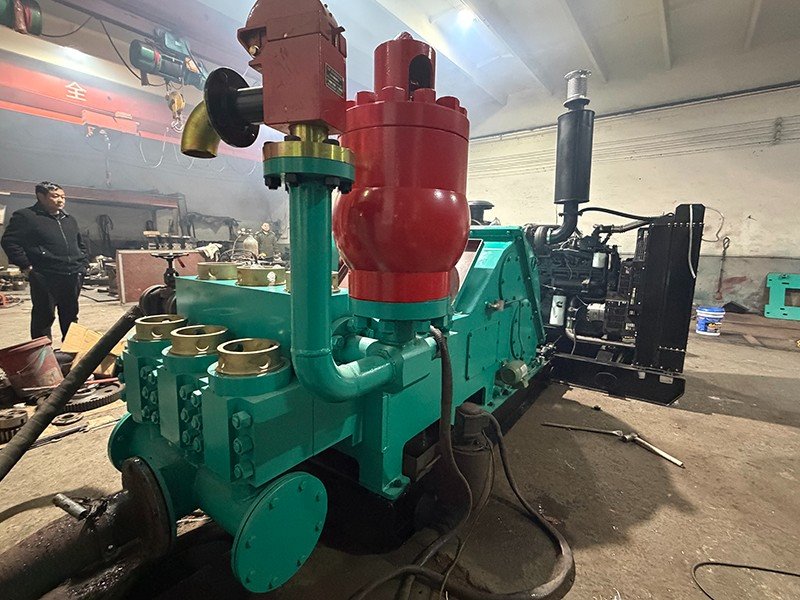

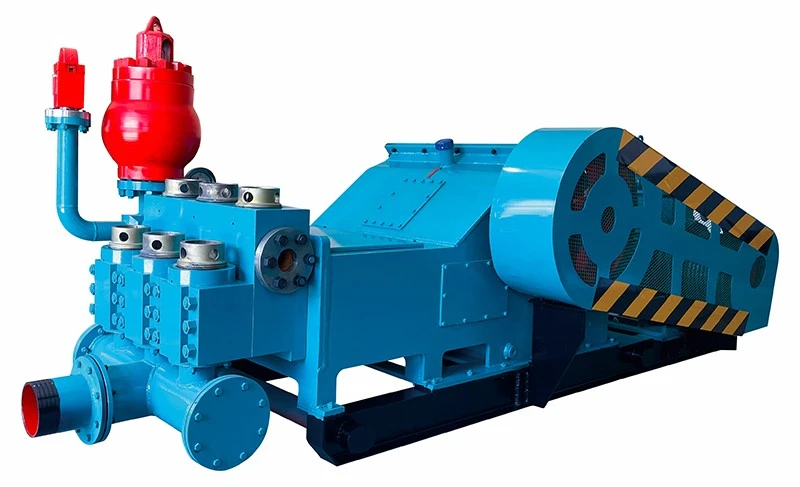

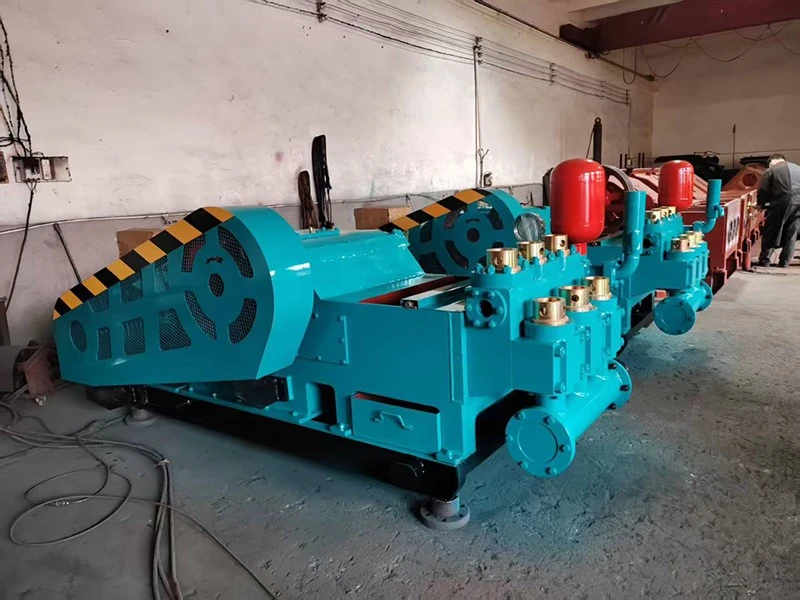

Our mud pump with diesel engine is a product of Hebei Zhongxin. Our factory started making mechanical parts in 1986. In 1996, we entered the drilling industry. Our factory covers more than 20 acres. We have over 30 years of experience. We support OEM and ODM customization. This pump comes with its own diesel engine. It does not need an external power supply. This pump is the 650 model. It comes with a diesel engine. Its input power is 400 kW (650 HP). The rated input speed is 165 rpm. The stroke length is 190 mm. The suction pipe diameter is 200 mm. The discharge pipe diameter is 83 mm. The theoretical flow rate is 37 to 187 m³/h. The rated pressure is 15.1 to 4.2 MPa. The total weight of the pump plus engine is 10280 kg. This mud pump with diesel engine is great for remote job sites.
Good for Deep Wells and Oil Drilling
In places with no electricity, this pump can work on its own. You can use it to drill deep water wells. It also works for oil drilling and geothermal wells. We use it for coal field exploration and water conservancy projects. Our products have gone to the Middle East, Africa, Russia, and South America. Customers say this pump works very well in the field. Below are the basic parameters for the 650 model. Please contact us for a detailed table of flow rate and pressure.
Basic Parameters of the 650 Mud Pump
|
Input Power |
400 kW / 650 HP |
|
Rated Input Speed |
165 rpm |
|
Stroke Length |
190 mm |
|
Suction Pipe Diameter |
200 mm |
|
Discharge Pipe Diameter |
83 mm |
|
Flow Rate Range |
37 - 187 m³/h |
|
Pressure Range |
4.2 - 15.1 MPa |
|
Total Weight (with engine) |
10280 kg |
Quality Processing and Thoughtful Service
We care a lot about quality. We machine parts according to API standards. We inspect every step. We keep all records. So every product can be traced. We also have the ISO9001 certificate. Our equipment includes CNC friction welding machines, pipe end upsetting machines, straightening machines, and a semi-automatic hardening line. Our service is thoughtful. Before sale, we answer all technical questions in detail. During production, we send photos and videos. After sale, we provide free lifetime technical help. We also supply parts for life. We can do video operation training. For some countries, we offer on-site service. This mud pump with diesel engine is a good choice for your field work.
