Mud Pump Engine

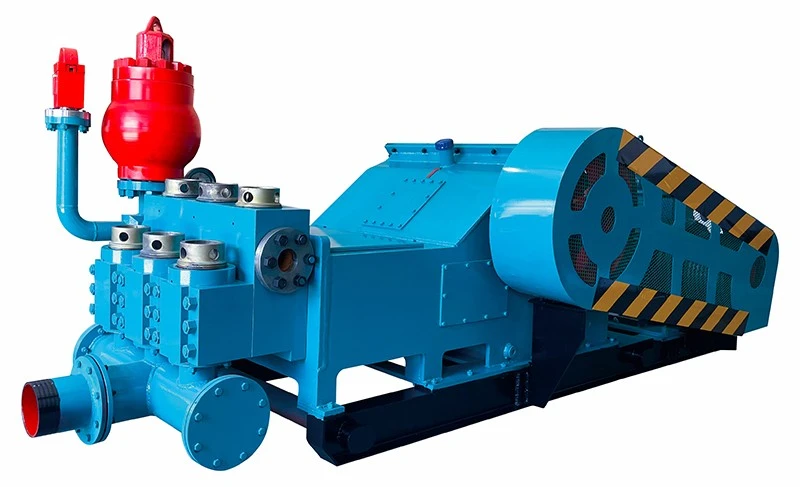

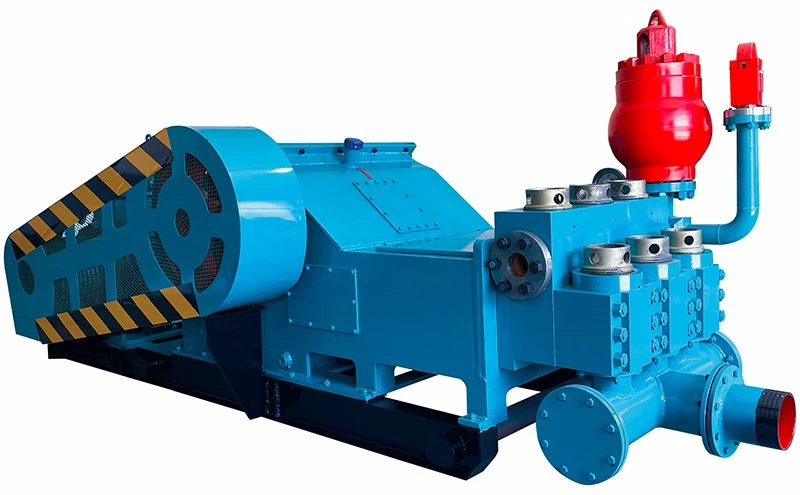

Our mud pump engine is made by Hebei Zhongxin to match our mud pumps. Our factory started making mechanical parts in 1986. In 1996, we entered the drilling industry. Our factory covers more than 20 acres. We have over 30 years of experience. We support OEM and ODM customization. This engine is mainly for our 650 model mud pump. The 650 mud pump has an input power of 400 kW (650 HP). Its rated input speed is 165 rpm. The stroke length is 190 mm. The suction pipe diameter is 200 mm. The discharge pipe diameter is 83 mm. The theoretical flow rate is 37 to 187 m³/h. The rated pressure is 15.1 to 4.2 MPa. The total weight is 10280 kg. This weight includes the pump body and the engine. This mud pump engine unit is good for field work with no electricity.

The engine runs the whole pump by itself. You can use it for deep water well drilling. It also works for oil extraction and geothermal wells. We use it for water conservancy projects and coal field exploration. Our products have gone to the Middle East, Africa, Russia, and South America. Customers say our engine has strong power and saves fuel. Below are the basic parameters for the 650 mud pump. Please contact us for a detailed table of flow rate and pressure.

We care a lot about quality. We produce according to API standards. We do a 100% check on every product. We keep all production and test records. So every product can be traced. We have the ISO9001 certification. Our factory has CNC friction welding machines, pipe end upsetting machines, straightening machines, and a semi-automatic hardening line. Our service is thoughtful. Before sale, we discuss parameters with you in detail. During production, we send photos and videos. After sale, we provide free lifetime technical help. We also supply parts for life. We can do video operation training. For some countries, we offer on-site service. This mud pump engine is the power core for your field work.
