A Rig for Deep Water Wells in Rock

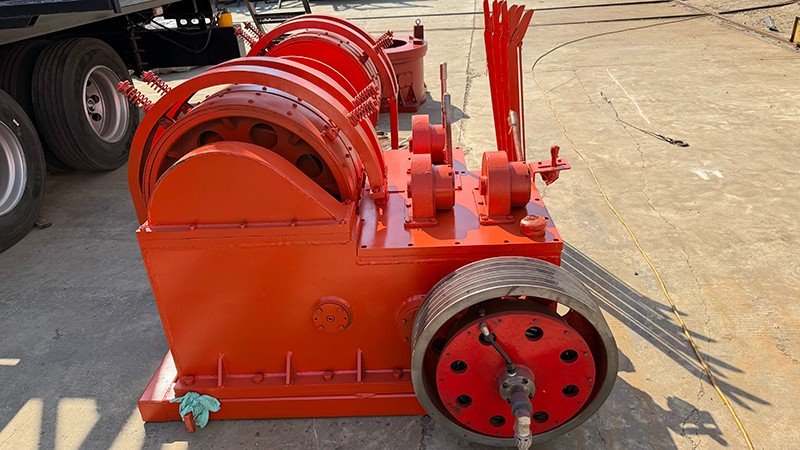

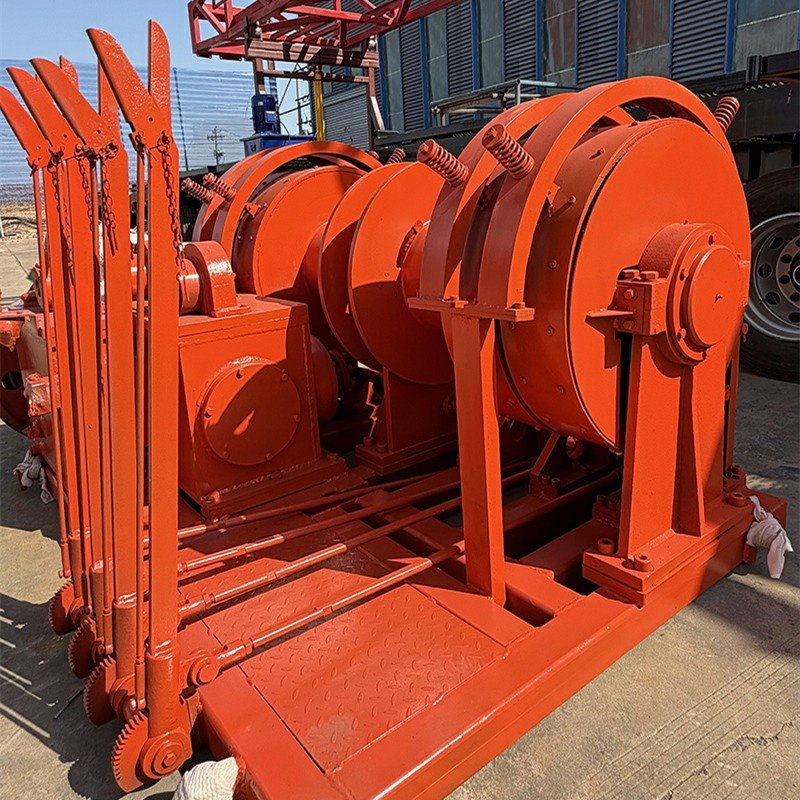

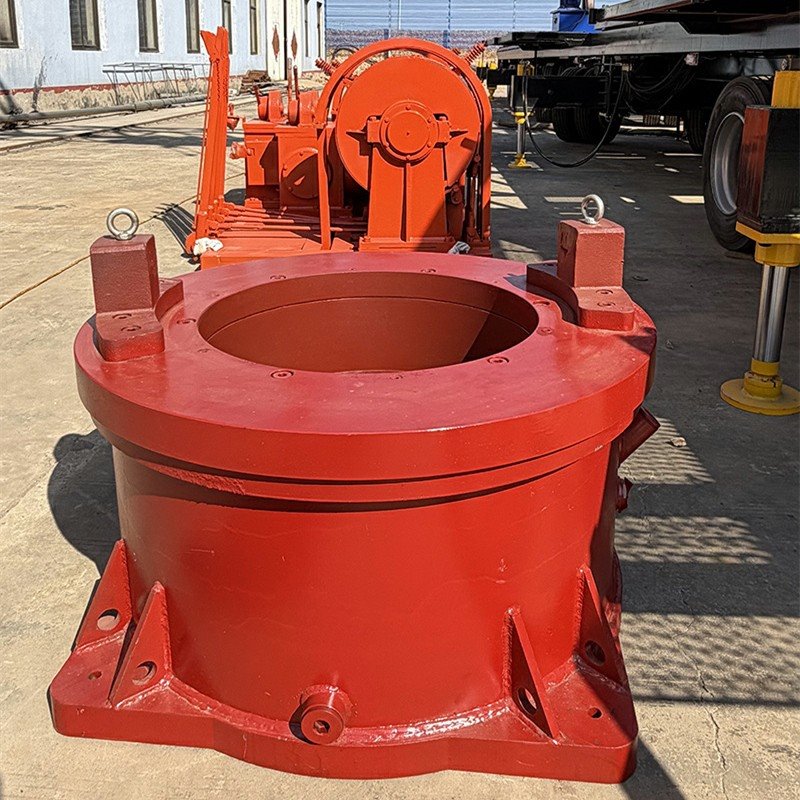

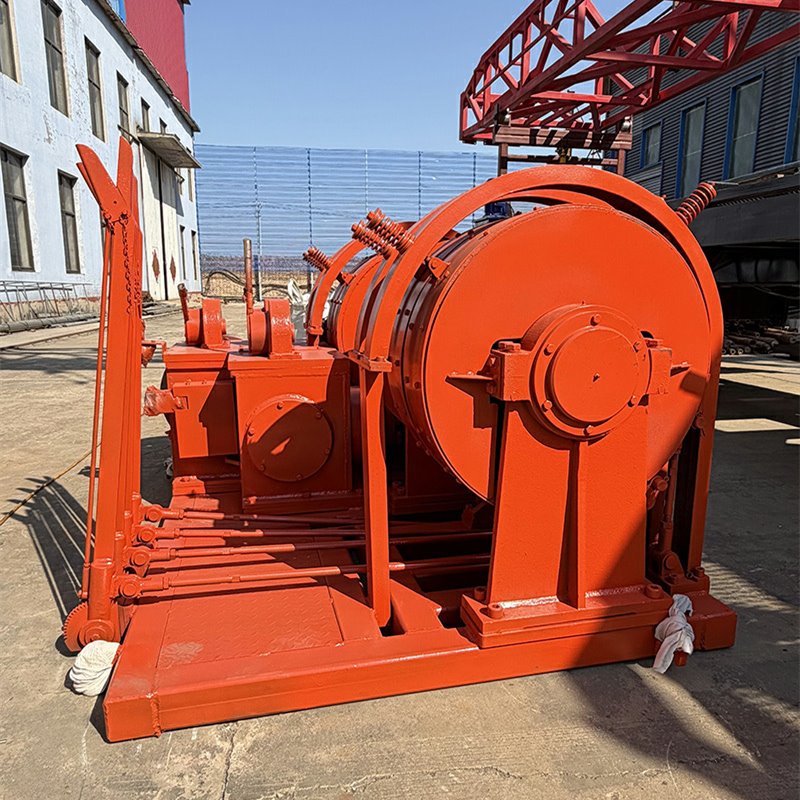

Our deep rock water drilling rig is a product of Hebei Zhongxin. Our factory was built in 1986. We have over 30 years of history. In 1996, we started making drilling equipment. Our factory covers more than 20 acres. We have our own R&D team. This rig is made to drill deep water wells in rock. Our main model is the ZXT-1500 water well rig. The drilling hole diameter changes with depth. The motor power depends on the configuration. The rotary table opening is 660 mm. The rotary table speeds are 153, 89, 55, and 39 rpm, with forward and reverse. The main winch single rope lift capacity is 90 kN. The auxiliary winch single rope lift capacity is 60 kN. The mud pump is the F300 model. Its rated pressure is 15.5 MPa. Its max flow rate is 120 m³/h. The mast is a portal type with a 70-ton load capacity. The effective height is 18.5 to 24 meters. The size is 13300 mm x 2780 mm x 4360 mm. The total weight is 42 tons. This deep rock water drilling rig is good for deep water wells.
Fast Drilling in Rock Layers
You can use it for geothermal wells. It also works for uranium extraction wells and grouting holes. We use it for shallow gas holes and geological exploration. Our products have gone to the Middle East, Africa, Russia, and South America. Customers say our rig drills fast in rock layers. The rig can use mud, foam, or air for drilling, depending on ground conditions. The crawler tracks are driven by a hydraulic motor. The rotary head uses a low-speed high-torque hydraulic motor and a gear reducer. The feed uses a push cylinder and steel wire rope.
Basic Specifications of ZXT-1500 Rig
|
Parameter |
Value |
|
Rotary Table Opening |
660 mm |
|
Rotary Speeds |
153, 89, 55, 39 rpm (forward/reverse) |
|
Main Winch Lift Capacity |
90 kN |
|
Auxiliary Winch Capacity |
60 kN |
|
Mud Pump (F300) Pressure |
15.5 MPa |
|
Mud Pump Max Flow Rate |
120 m³/h |
|
Mast Type / Load |
Portal / 70 tons |
|
Mast Effective Height |
18.5 - 24 m |
|
Machine Size |
13300 x 2780 x 4360 mm |
|
Total Weight |
42 tons |
Strict Quality and Thoughtful Service
We have strict quality requirements. We produce to API standards. We do a 100% check on every product. We have the ISO9001 certification. Our service is thoughtful. Before sale, we help you match the right plan. During production, we send progress photos and videos. After sale, we provide free lifetime technical help. This deep rock water drilling rig is a good helper for your rock drilling work.
